Wrap-Around Labeler

CVC 310

The CVC 310 Gallon Wrap Labeler is built to automatically apply pressure sensitive labels onto arge diameter round containers. The 310's extended wrap station includes a vacuum system for applying labels up to 17.5" in length and can be ordered with a 10" wide conveyor. The 310 is an ideal machine for contract packagers and manufacturers serving the nutraceutical, food, chemical, personal care, and household product markets.

STANDARD FEATURES

  • SelfSet™ Auto Adjusting Control System
  • Stepper Motor Driven Head Labeling
  • Touch Screen HMI
  • Label Head with up to ± 1 mm ( 1/32”) Accuracy (*Bottles/ Containers Dependent)
  • Label Sensor for Paper or Opaque Labels
  • Product Sensor with Opaque and Clear Bottle Mode
  • Variable Speed Separator Wheel
  • Stainless Steel Frame on Lockable Casters
  • Stainless Steel Flat-bed Conveyor with 4" Wide Table Top Chain (Raised Sanitary Bed) Upgradeable to 6" Wide

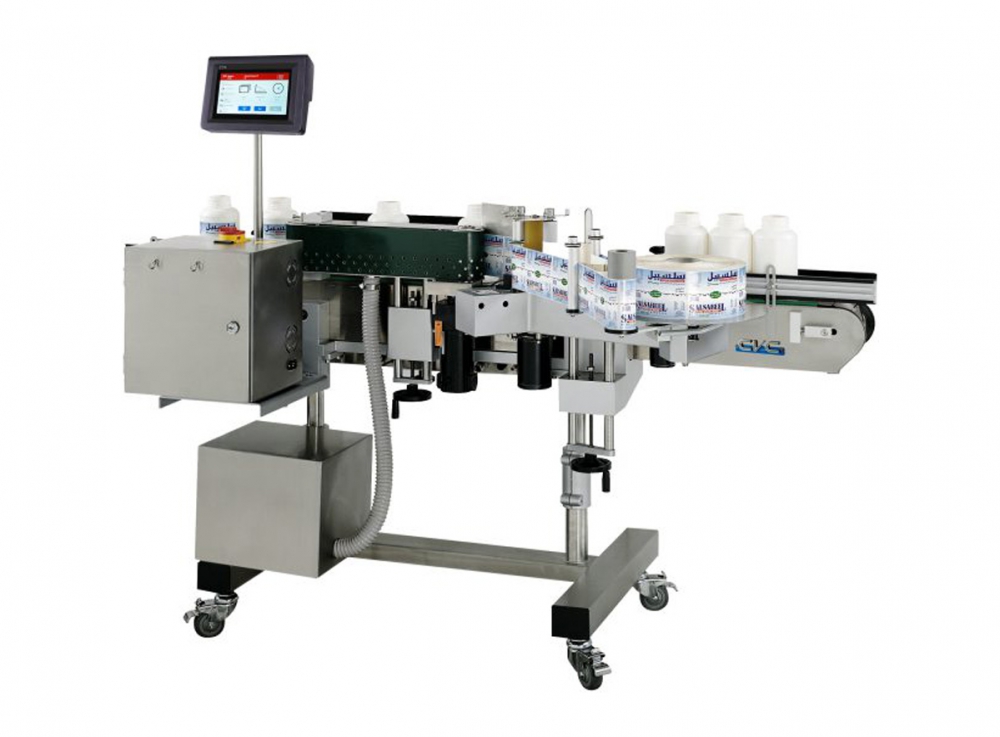

CVC 310
CVC 310
Previous Next Pause

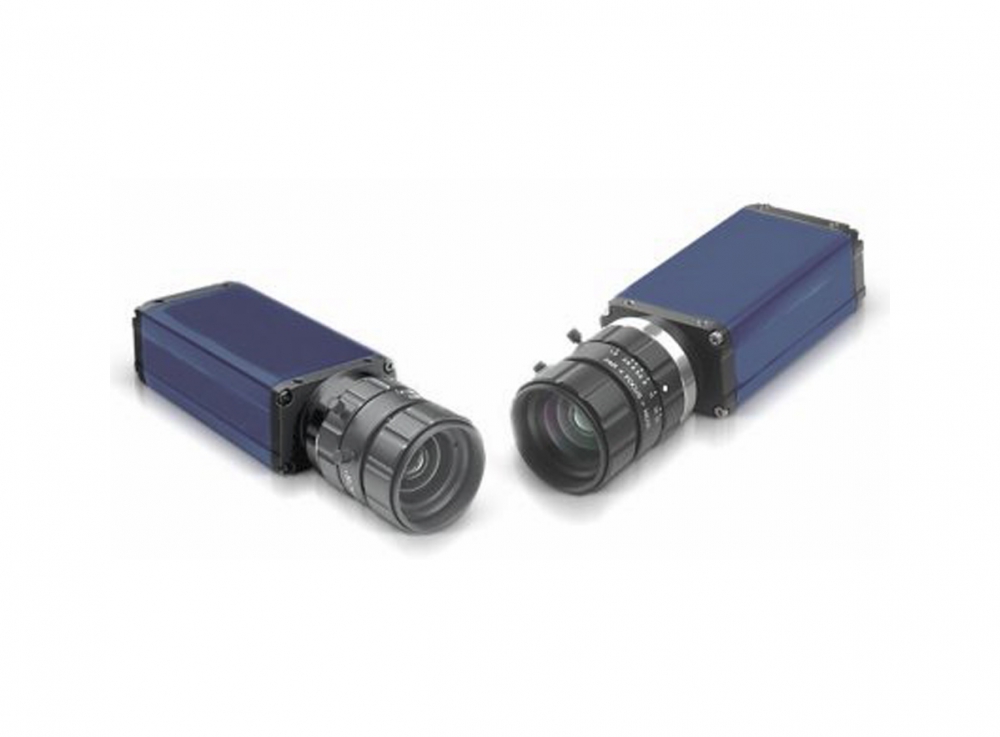

CVC 310 THERMAL TRANSFER PRINTER VISION INSPECTION SYSTEMS

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • C60 Hot Stamp (Lot/Date Coding)
  • Missing Hot Stamp Imprint Check
  • Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
  • Dataflex or Similar Lot/Date Code Printer
  • Clear, Metalic or Color Label Sensor
  • End to end Transfer Plates
  • Infeed and outfeed Conveyor Extensions
  • Adjustable Tilt for Tapered Bottles
  • Product Infeed Tray with Stainless Steel Insert and Paddle for easy Product Loading onto a Rotary Turntable
  • Feed Screw (*)
  • Custom made Wrap Station
  • Spindle Wrap Station
  • Stainless Steel Raised Bed Sanitary Conveyor (Factory installed only)



MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 310 Technical Specifications
Productivity Up to 120 BPM
Labeling Speed: 30 M/min (98 ft/min)
Applicable Size Label:
Length: 15-450 mm (1⁄2" to 18")
Width: (depend on label head type)
A: 15-80 mm (1⁄2" to 3")
B: 15-120 mm (1⁄2" to 4 3⁄4")
C: 15-150 mm (1⁄2" to 6")
D: 15-180 mm (1⁄2" to 7")
E: 15-220 mm (1⁄2" to 8 3⁄4")
F: 15-265 mm (1⁄2" to 11 1⁄2")
Bottle:
Dia.: Ø30-150 mm (1 1⁄4" to 6”)
(depend on conveyor width)
Height: 50-320 mm (2” to 12 1⁄2")
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 725 VA (110V: 6.6 A, 220V: 3.3 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 2,000 x 1,140 x 1,425 mm
(Including conveyor) (6’-7” x 3’-9“ x 4’-8”)
Machine Weight 210 kg (463 lbs)
Noise Level ≤ 75 dB
