TECHNICAL SPECIFICATIONS

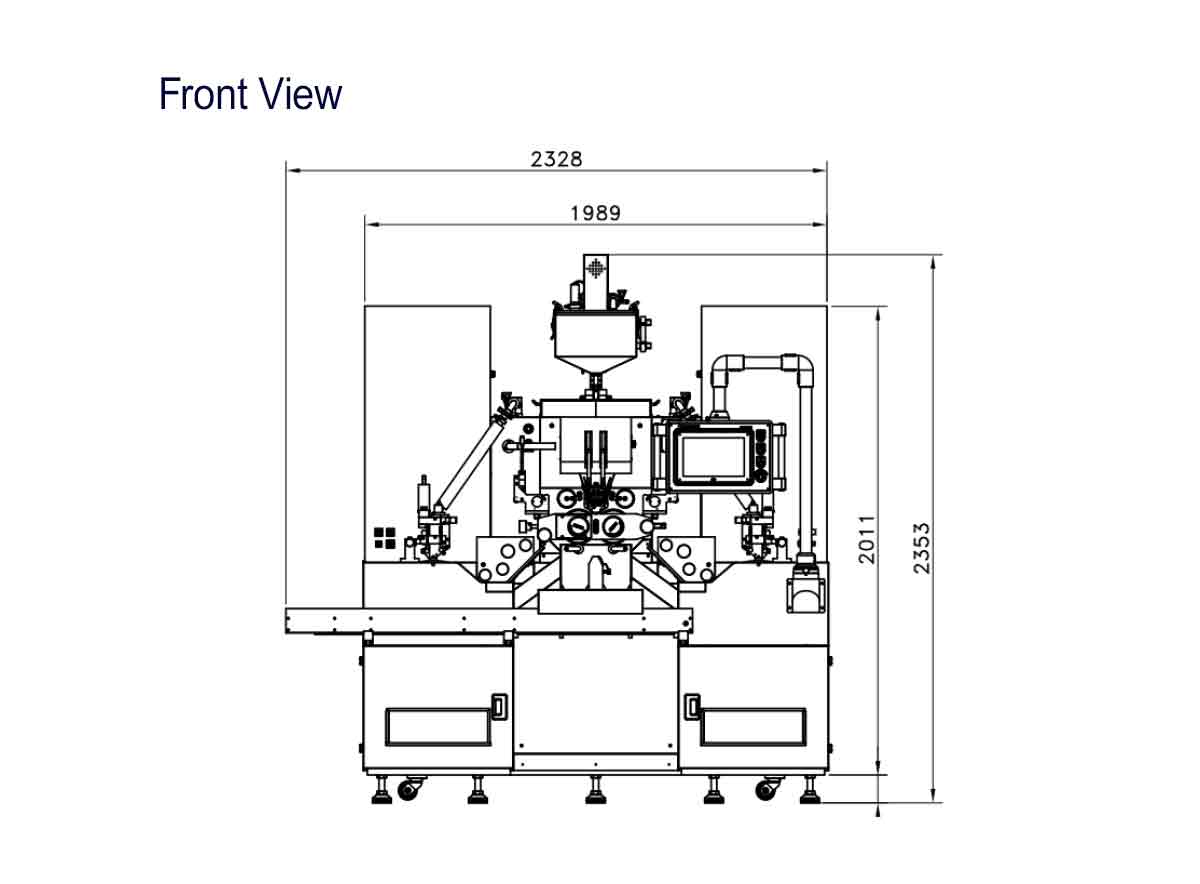

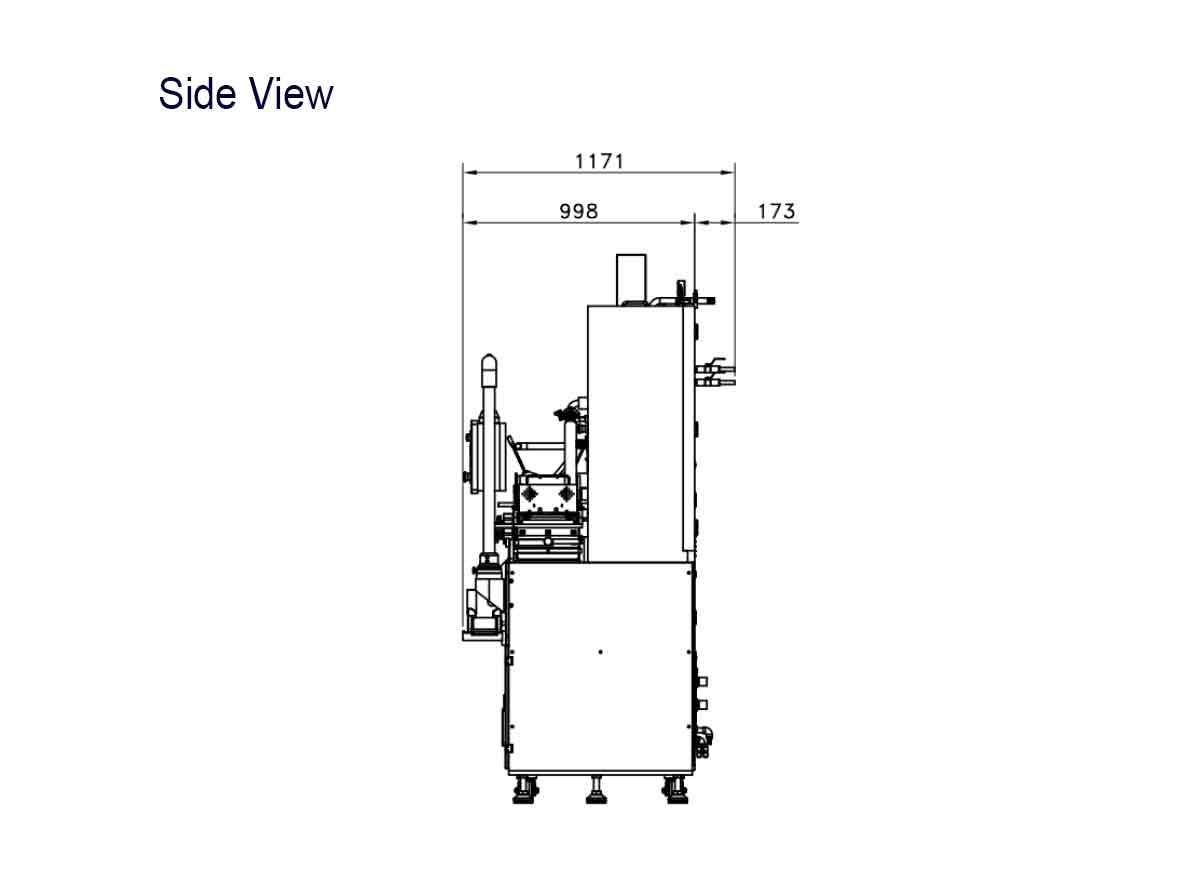

MACHINE LAYOUTS:

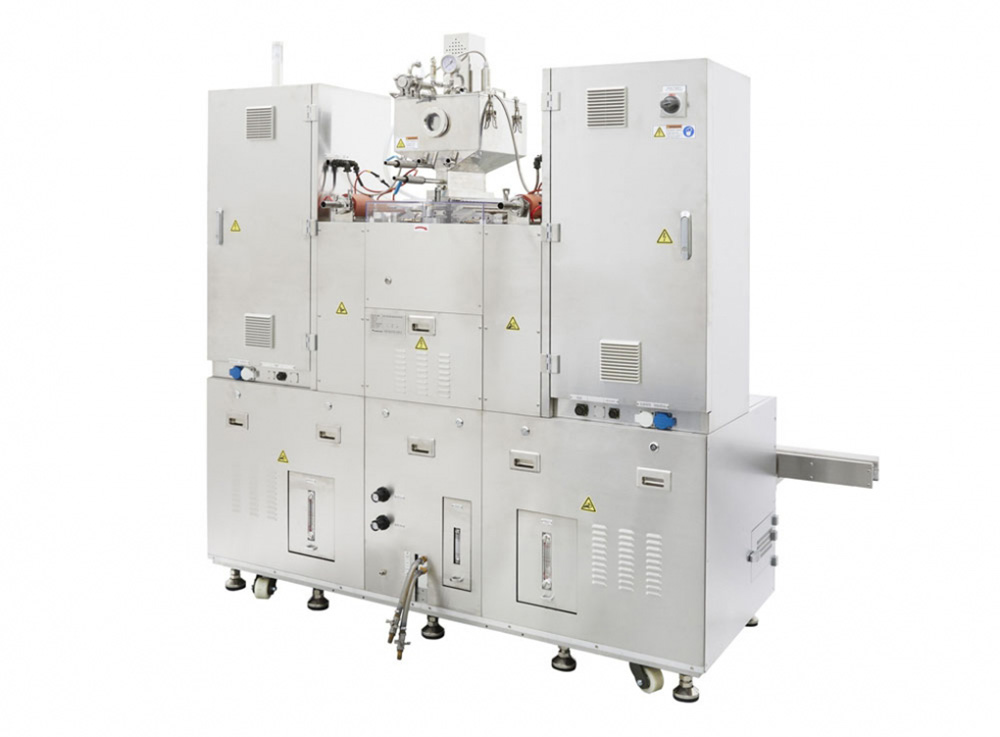

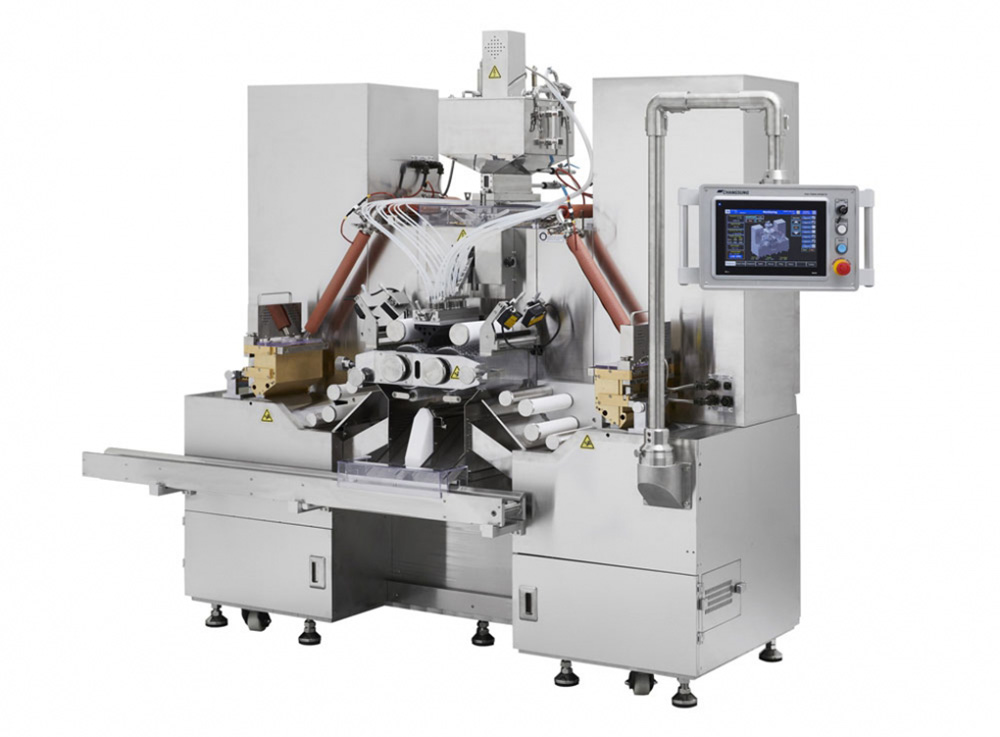

Servo Softgel Machine
770SR
STANDARD FEATURES
- Pharmaceutical & Nutraceutical
- Providing an additional Ethernet port and address mapping service to meet customer’s SCADA communication system
- Easy to change the filling volume on the touch screen (EFA)
- Auto Gel Thickness control system included (AGT)
| Technical Specifications | 770SR Technical Specifications |
| Dimension | 2,328(L) x 1,171(W) x 2,353(H)mm |
| Weight | 2,100 KG |
| Electric Power | AC 220, 380, 440 V / 50,60 Hz / 3 Ph |
| Power Consumption | 23kW |
| Die Roll Speed | 5 rpm |
| Compressed Air | 5 kg f/cm² |
| Die Roll Size | Ø150 x 250 mm |
| Productivity | AVG. 71,400 caps/hr at 5 rpm (Ob#20) |
