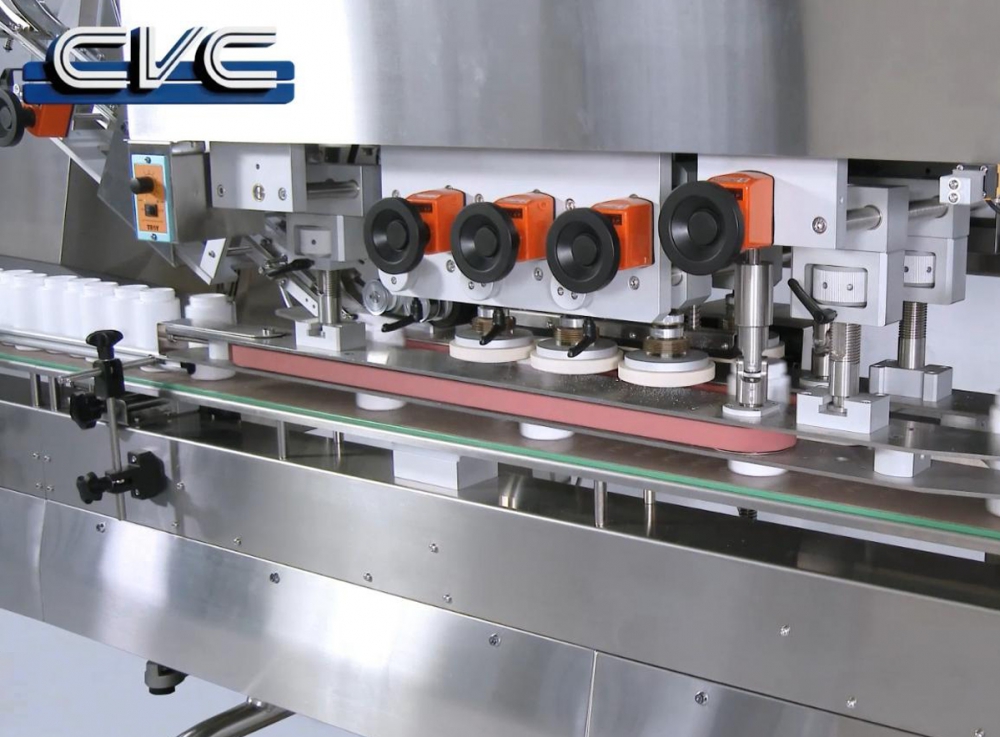

The CVC 1205 Capper is a very flexible machineThe CVC 1205 Capper is a very flexible machinedesigned to apply and tighten screw-on capsonto containers at rates of up to 120 bottles perminute. The CVC 1205 is Siemens PLC controlled. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.
Technical data contained in this material are not binding and may be subject to change without prior notice.

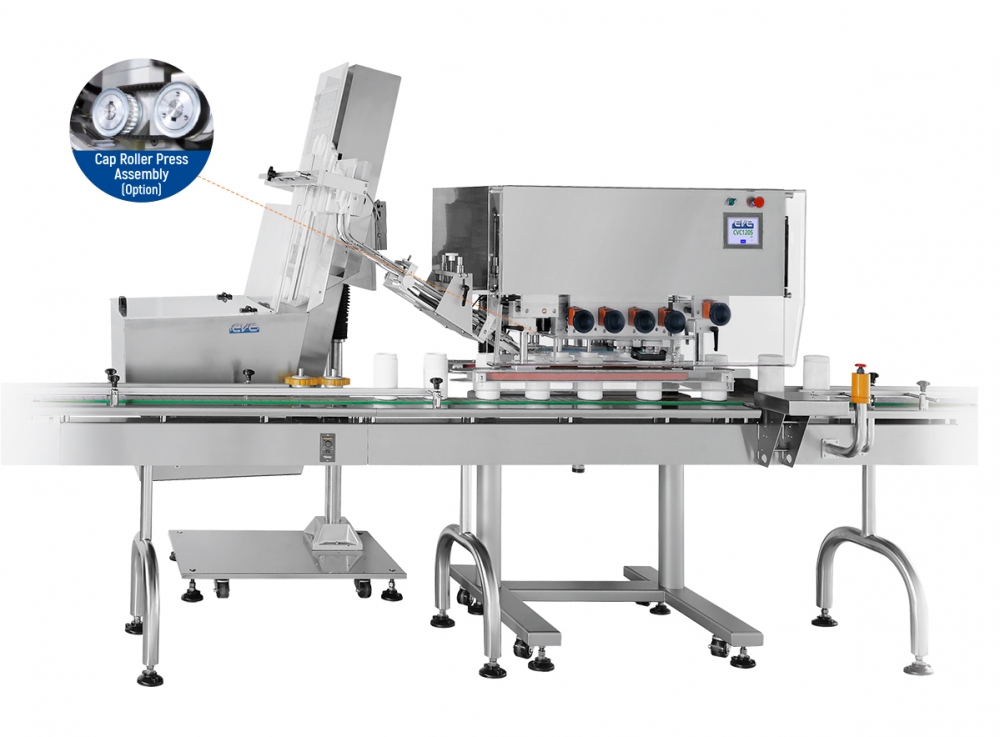

| Technical Specifications | CVC 1205 + CVC 1200W Technical Specifications |
| Type | U4 |
| Productivity | Up to 100-120 BPM (base on 40-100 cc round bottle) |
| Applicable Size |
Cap: Dia.: Ø30-110 mm (１1⁄4" to ４1⁄4") Height: 10-25 mm (3⁄8" to 1") Bottle: Dia.: Ø30-110 mm (１1⁄4" to ４1⁄4") with Cap Height: 50-220 mm (2” to ８1⁄2") |
| Hopper Capacity | 220 L (7.7 Cuft) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | CVC 1205: 1,320 VA (6 A) / CVC 1200W: 200 VA (0.9 A) |
| Air Consumption |
CVC 1205: 84 NL/min (2.9 CFM) CVC 1200W: 168 NL/min (5.8 CFM) |
| Consumption Machine Dimensions | CVC 1205: 1,595x 1,105x 2,265 mm (5’-3”x 3’-8”x 7’-5”) / CVC 1200W: 1,385x 1,225x 2,380 mm (4’-7” x 4’ x 7’-10”) |
| Machine Weight |
CVC 1205: 457 kg (1,008 lbs) CVC 1200W: 435 kg (959 lbs) |
| Noise Level | ≦60dB |
