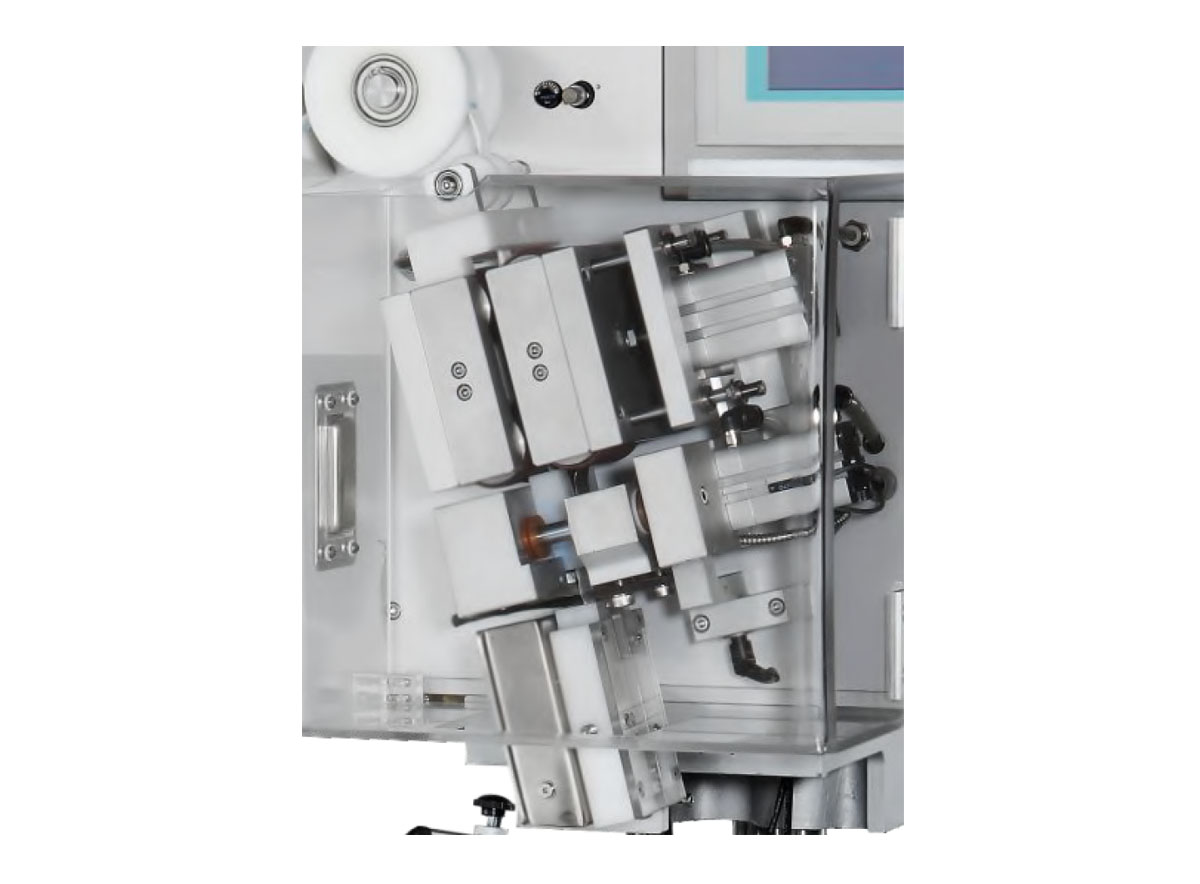

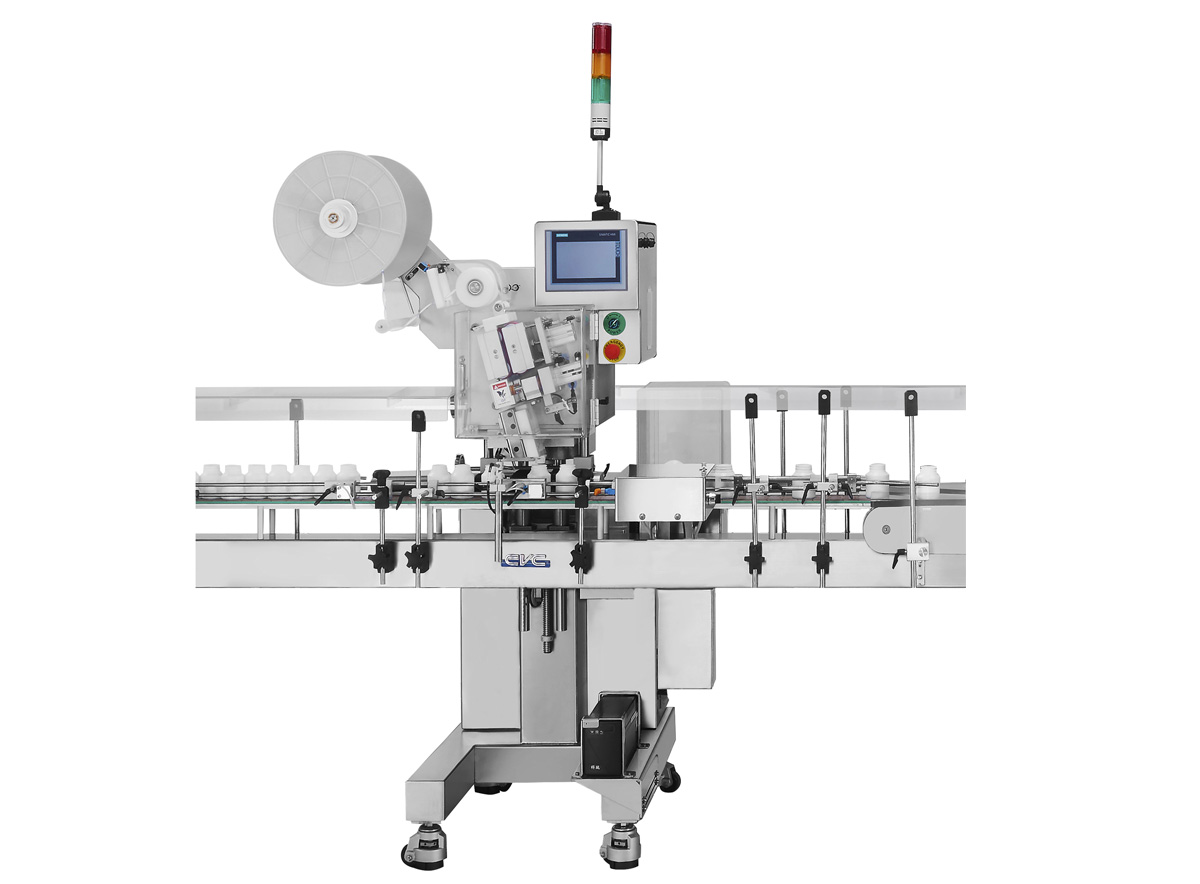

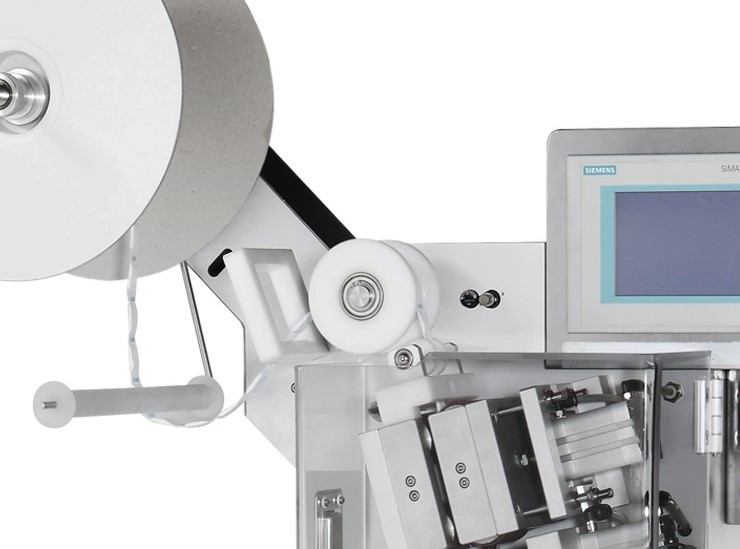

The CVC 1103H Pouch Desiccant Inserter is a compact highly cost-effective means to insert desiccants or oxygen absorbents into a variety of bottles and containers. The system cuts packets from a roll and inserts them into containers at speeds of up to 230 bottles per minute. The CVC 1103H is Siemens PLC controlled with servo motor. Options include 3-color stack light and feed screw for higher speed applications.
Technical data contained in this material are not binding and may be subject to change without prior notice.
| Technical Specifications | CVC 1103H Technical Specifications |
| Type | U4 |
| Productivity | Up to 230 BPM (based on 100ml round bottle and 0.5g, L: 35-38 mm pouch, subject to trial confirmation) |
| Applicable Size |
●Pouch Type: R-Type: Paper F-Type: Film ●Pouch Size Range: Thickness: 3- 10 mm (1⁄8" to 3⁄8") Length: 33- 75 mm (1 1⁄4" to 3") Width: 17- 30 mm (5⁄8" to 1 1⁄8") ●Bottle Size Range: Dia.: Ø30- 124 mm (1 1⁄4" to 4 3⁄4") Height: 50- 220 mm (2" to 8 1⁄2") Bottle opening: Ø20- 100 mm (3⁄4" to 3 3⁄4") |
| Power source | 220 V, 50/60 Hz, 1 PH |
| Power Consumption | 900 VA (4 A) |
| Air Pressure | 6 bar (87 psi ) |
| Air Consumption | 115 NL/min (4 CFM) |

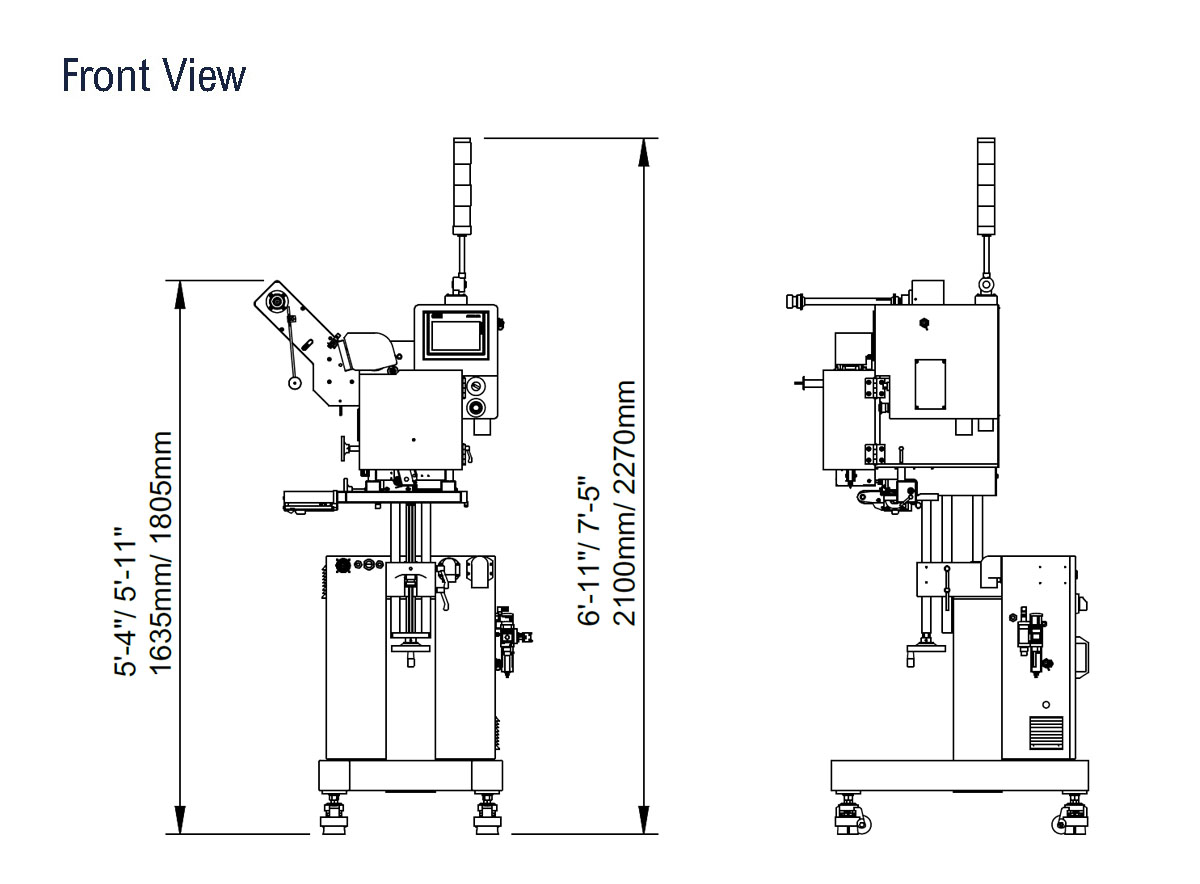

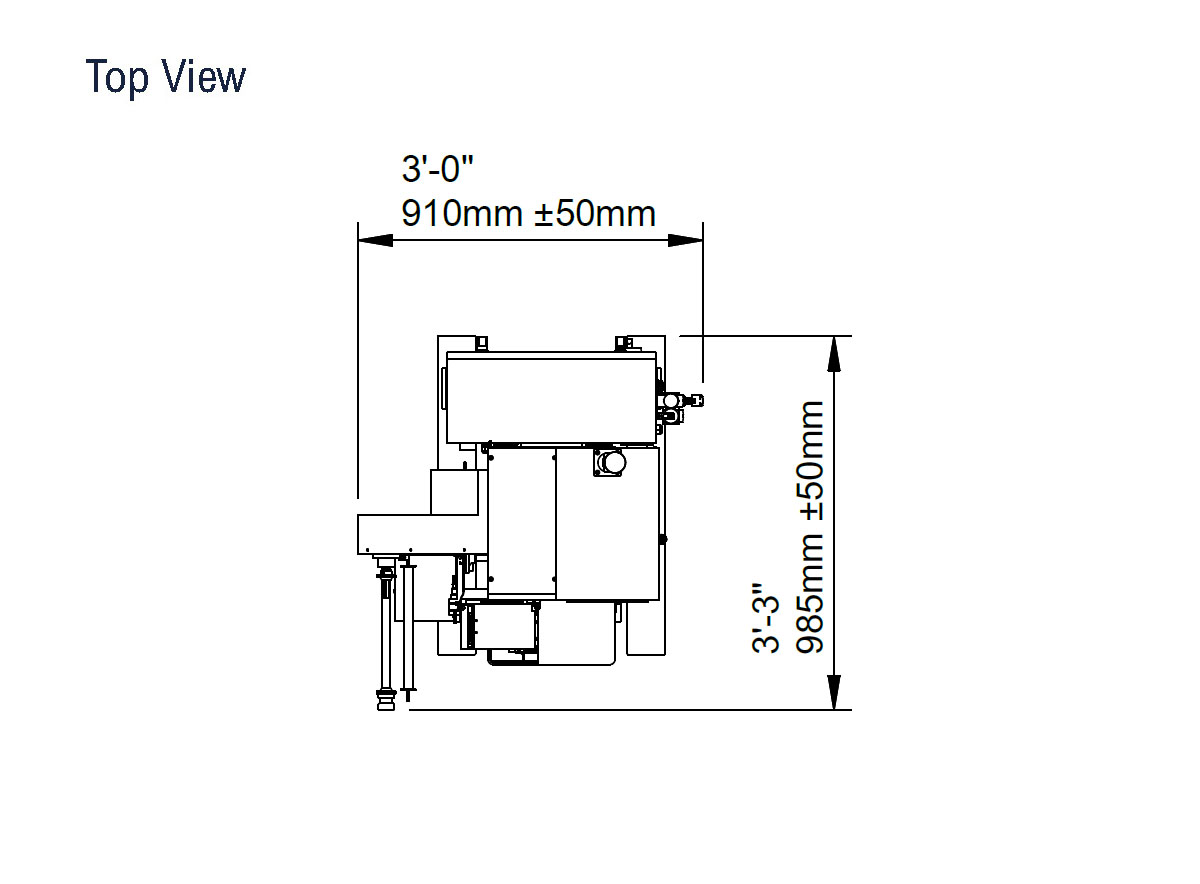

| Consumption Machine Dimensions | 910 x 985 x 2,270 mm (3'-0" x 3'-3" x 6'-11") (L x W x H) |
| Machine Weight | 190 kg (418 lbs) |
| Noise Level | ≤70 dB |
